Nd:YAG激光器-1064nm-泵浦鏡

當前位置： 首頁 ? Products ? 激光光學 ? Nd:YAG激光器-1064nm-泵浦鏡
Nd:YAG激光器-1064nm-泵浦鏡

激光泵鏡采用高品質熔融石英基片，配合全介質高反鍍膜和抗反射膜，在相應的激光波長范圍內提供了極高的反射效率等性能。激光泵鏡可用于激光腔內設計，并加強反射次數，提高輸出功率。主要采用了高反射膜層（HR）進行鍍膜和抗反射膜（AR），HR膜層在特定的光波段范圍對自然光或S-偏振光和P-偏振光的反射率可高達99%甚至接近于100%，而AR對它們的反射率可低至0.2%以下，高精度加工的石英光學基片有效地減低了光散射，使這類激光泵浦鏡可廣泛應用于各種高精度激光應用場合。

加工指標

平行性10〞
垂直性5ˊ
表面質量20-10
表面平整度λ / 8 @ 632 nm
通光孔徑> 85% 中心區域
倒角0.2mm-0.5mm @ 45°
尺寸精度± 0.05mm
厚度/直徑公差(0,-0.1)mm
損傷閾值>10 J/cm2@ 1064 nm 10 ns 10 Hz

產品列表-熔石英（材料可選）

膜系譜圖請點擊下方藍字
型號尺寸外形膜系
CL-PM11023-127? =12.7mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane ′		Front?Side (S2)
HR(0°,1064nm)>99.9%
R(0°,808nm)<3%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11023-250? =25mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane ′		Front?Side (S2)
HR(0°,1064nm)>99.9%
R(0°,808nm)<3%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11023-381? =38.1mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane ′		Front?Side (S2)
HR(0°,1064nm)>99.9%
R(0°,808nm)<3%
Rear?Side (S1)
AR(0°,808nm)<0.2%

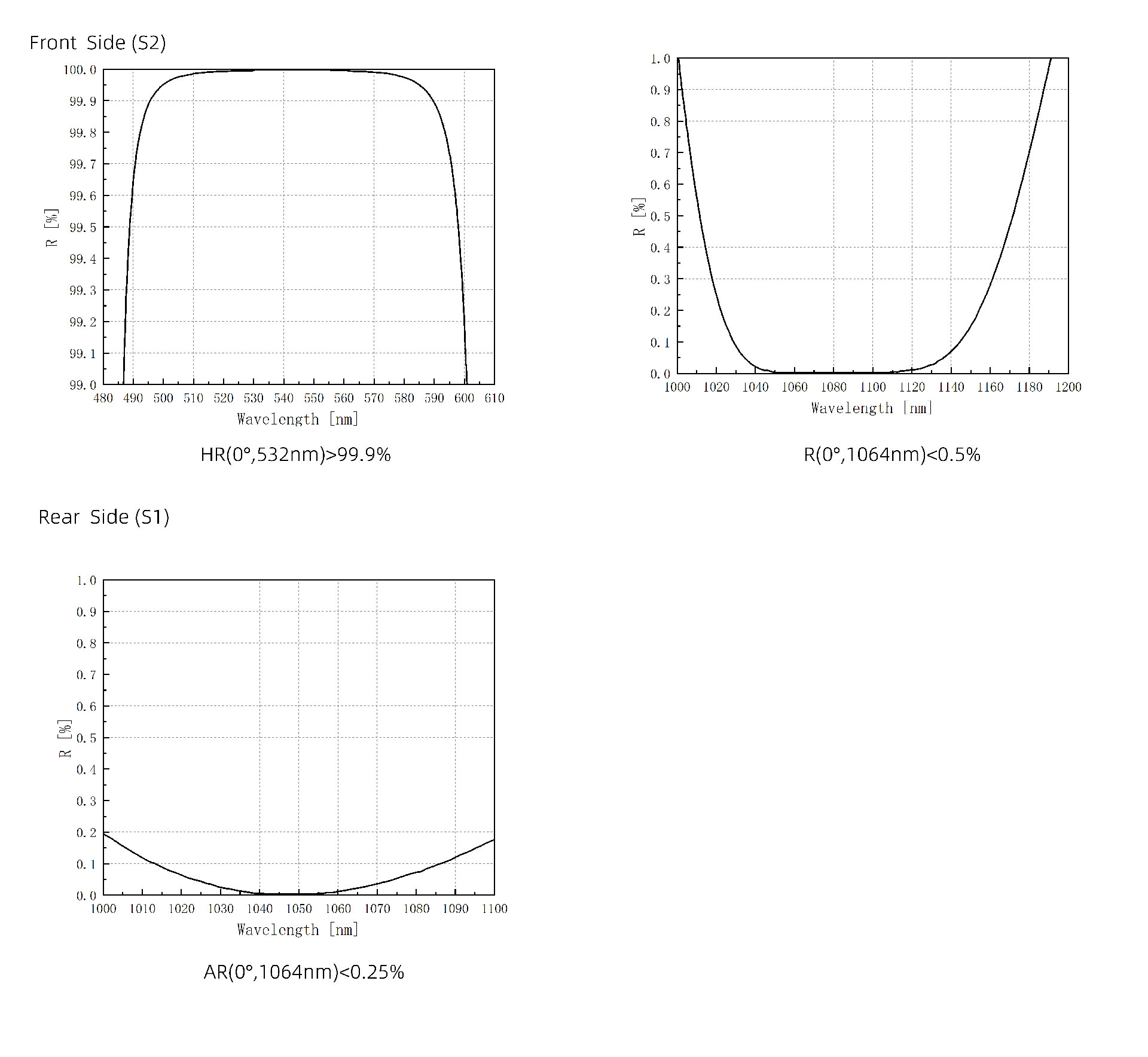

CL-PM11015-127? =12.7mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
R(0°,1064nm)<0.5%
Rear?Side (S1)
AR(0°,1064nm)<0.25%
CL-PM11015-254? =25.4mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
R(0°,1064nm)<0.5%
Rear?Side (S1)
AR(0°,1064nm)<0.25%
CL-PM11015-381? =38.1mm
t =6.35mm		Front?Side??(S2)
plane
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
R(0°,1064nm)<0.5%
Rear?Side (S1)
AR(0°,1064nm)<0.25%
CL-PM11006? = 12.7 mm
t = 6.35 mm		Front?Side??(S2)
concave
r =50?mm (±0.5?%)
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
R(0°,808nm)<5%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11007? = 12.7 mm
t = 6.35 mm		Front?Side??(S2)
concave
r =100?mm (±0.5?%)
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
R(0°,808nm)<5%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11008? = 12.7 mm
t = 6.35 mm		Front?Side??(S2)
concave
r =200?mm (±0.5?%)
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
R(0°,808nm)<5%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11009? = 12.7 mm
t = 6.35 mm		Front?Side??(S2)
concave
r =300?mm (±0.5?%)
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
R(0°,808nm)<5%
Rear?Side (S1)
AR(0°,808nm)<0.2%
CL-PM11011? = 12.7 mm
t = 6.35 mm		Front?Side??(S2)
concave
r =500?mm (±0.5?%)
Rear?Side??(S1)
plane
Front?Side (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
R(0°,808nm)<5%
Rear?Side (S1)
AR(0°,808nm)<0.2%
如需定制產品請聯系我們
